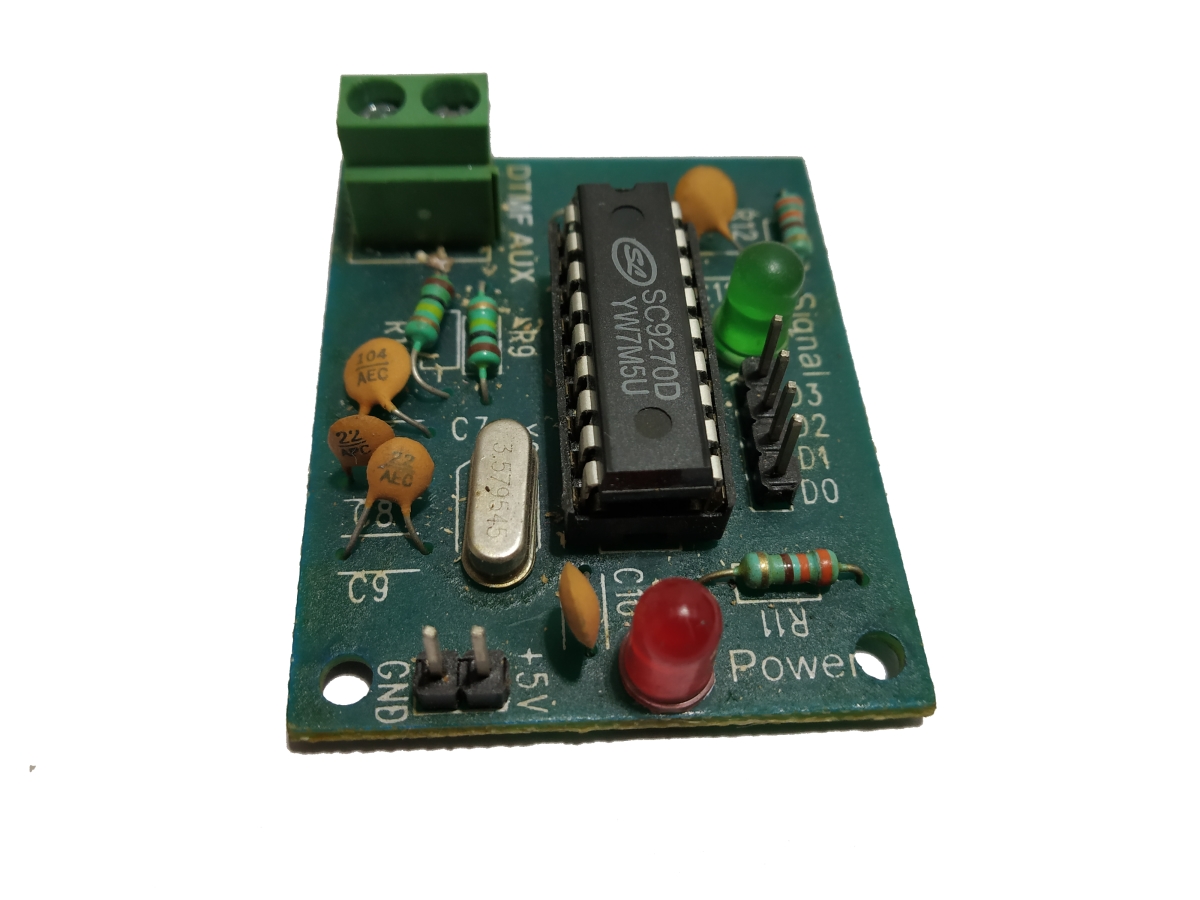

EnGeniusLab Introduces compact and highly readable DTMF(Dual Tone Multi Frequency) Decoder Module stands out in the league of similar modules available in the electronics markets provide operates 5 to 9 V DC. It’s equally capable to both CDMA AND GSM handsets works fine with stereo/MONO. Every single data bit is provided with an on this board led indicator for quick visual confirmation. The momentary output LED bit is also provided with a bright white flash LED.
When a valid DTMF tone is received as input the status led flashes and the corresponding 4 bit binary value is latched to the output pins D0, D1, D2 & D3 and then a status led blink. The module is capable of providing 16 different outputs if the tones are fade thru a tone generation circuit or through PC based software ( the inputs being from 0-9 * # and A B C D ).However when operated through cellular phone device it can provide only 12 diff outputs because of 0-9 keyboard along with * and #.
- Decodes DTMF as 4 bit binary
- TTL level output for direct connection to microcontrollers
- Low power 5V DC operation & Operating Current 100 mA
- LED indication of outputs
- Simple to use
- Based on excellent HT92B70 IC
