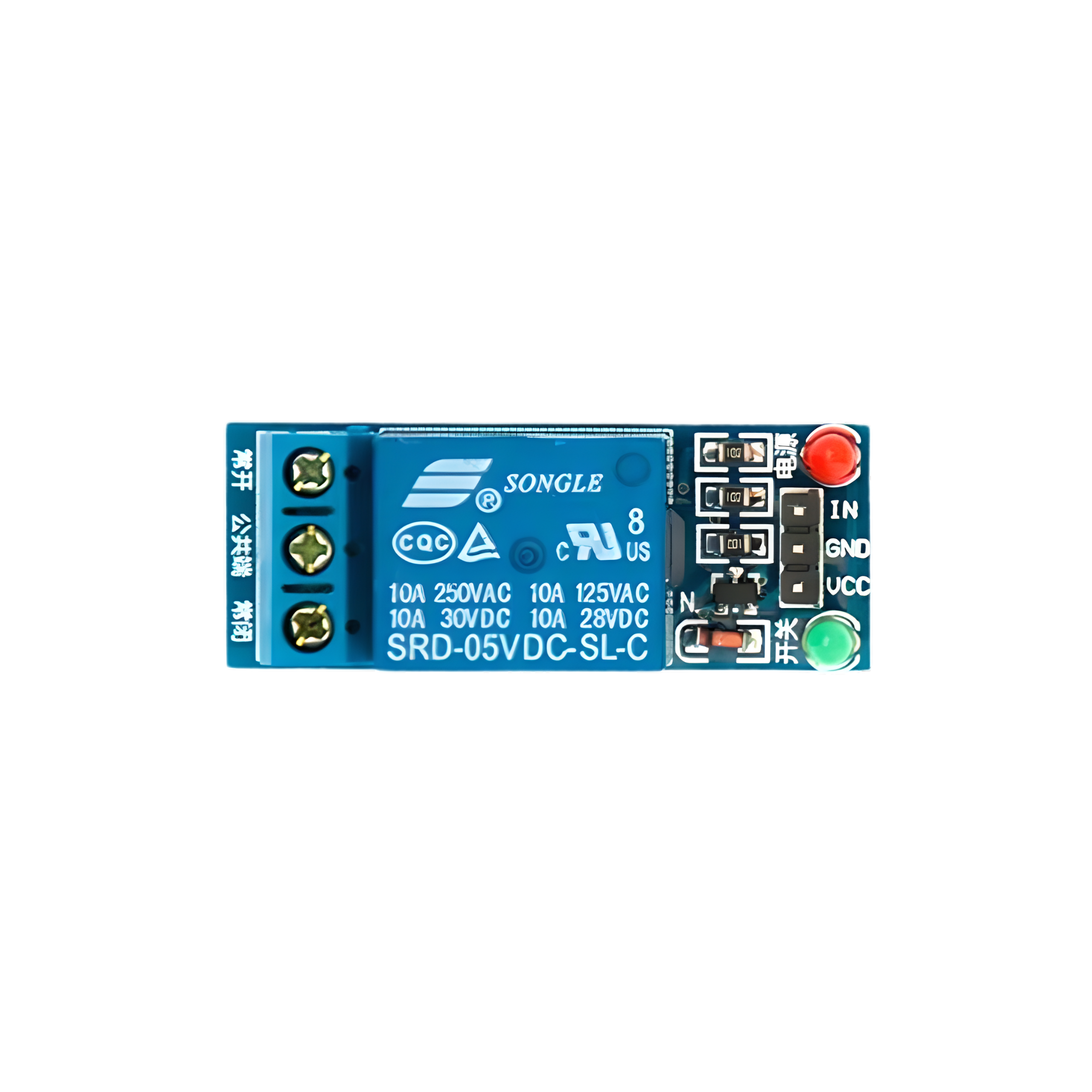

Equipped with a high-quality relay, the board can handle a maximum load of 10A at 120V or 7A at 240V AC, and 7A at 24V DC. The relay’s connections—Common (C), Normally Open (NO), and Normally Closed (NC)—are easily accessible via 3-pin screw terminals, allowing for straightforward setup and disconnection.

For improved usability, the board features indicators for power and relay status, which simplify the debugging process. Additionally, power input and relay control signals are conveniently available through header pins on the board, providing flexibility for integration into existing systems.

Features

• 1 channel relay board
• Operating Voltage 5V
• Max Current : 20mA
• Relay Contact Current Capacity at AC250V: 10A
• Relay Contact Current Capacity at DC5V: 10A
• One normally closed contact and one normally open contact
• Triode drive, increasing relay coil
• High impedance controller pin
• Pull-down circuit for avoidance of malfunction
• Power supply indicator lamp
• Control indicator lamp
• Indicator for Relay output status
• Can Be controlled various appliances & other Equipment With Large current.
• Standard TTL Level logic controlled (AVR, Arduino, 8051, PIC, ARM)
• The module is compliant with international safety standards, control and load areas isolation trenches;
