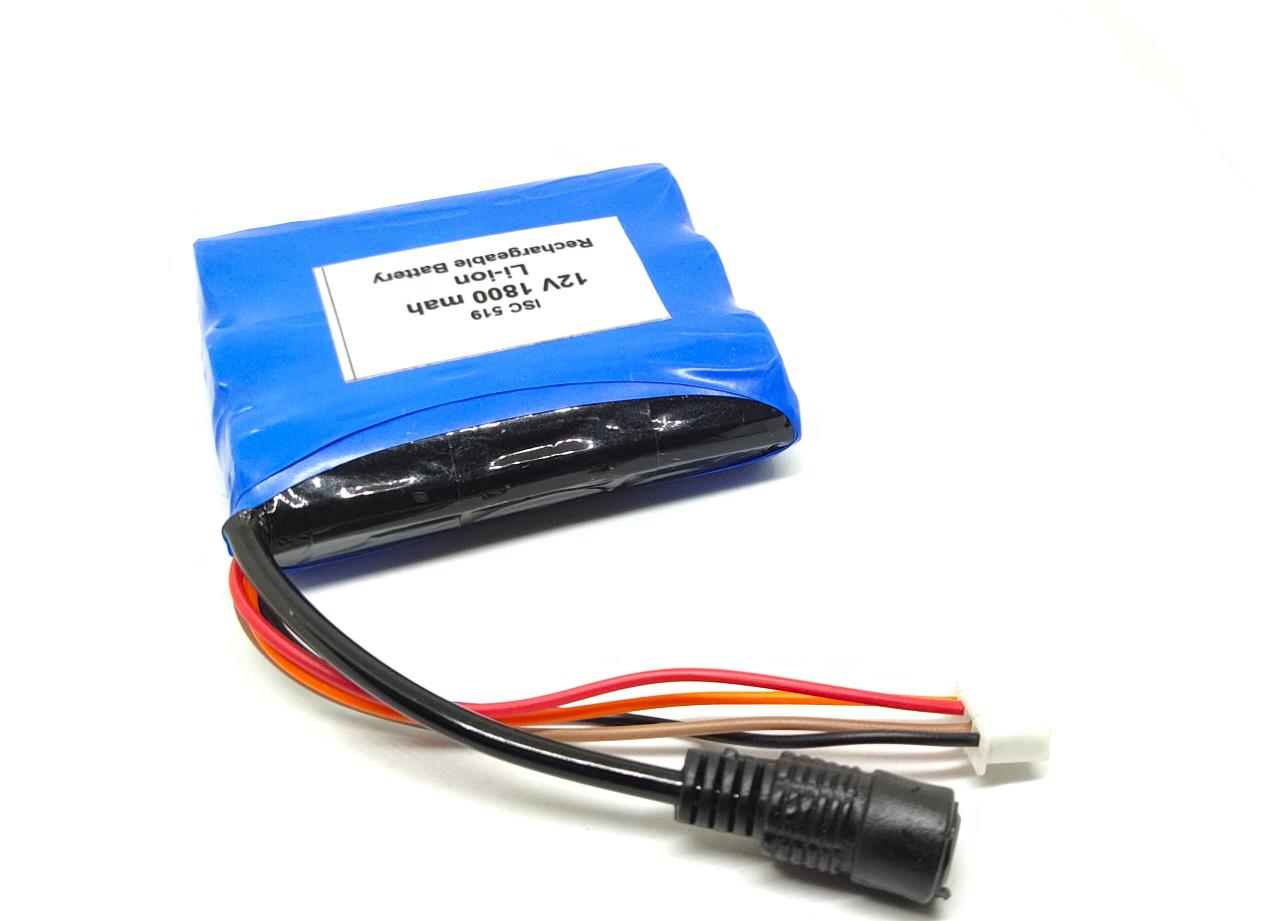

Battery: 18650 12.6v Battery pack Capacity: As per selection Battery Type: Rechargeable Li-on battery. Input Voltage: 12.6 V Output voltage: 11.1 - 12.6v DC Output Current: About 1-3A Product's life: charge and discharge circulation over 1000 Basic Information - Cell count: 3 - Cell type: 18650 - Configuration: 3 sets in series 1 sets in parallel(3S1P) Built-in BMS protection, With overcharge, over discharge, short circuit protection - Pack: Brick ,Blue PVC - Width: 20mm - Height: 68mm - Length: 55mm * Manual measurement, there will be deviations. Energy - Nominal Voltage: 11.1V - Output Voltage Range: 11.1v - 12.6 by test conditions (eg, temperature, wire loss, test equipment, test parameters, etc.), please perform multiple tests and take the average of the results to reduce the deviation. At a temperature of 25 ° C, the deviation between the pure resistance discharge test result and the nominal data is controlled within ±10%, which is normal. Charging - Charge mode: CC CV - Use a S Lithium-ion battery dedicated charger to charge up to 8.4v - Charge current 2A max Discharge - Continuous discharge current 5A - Instantaneous discharge current 7A
