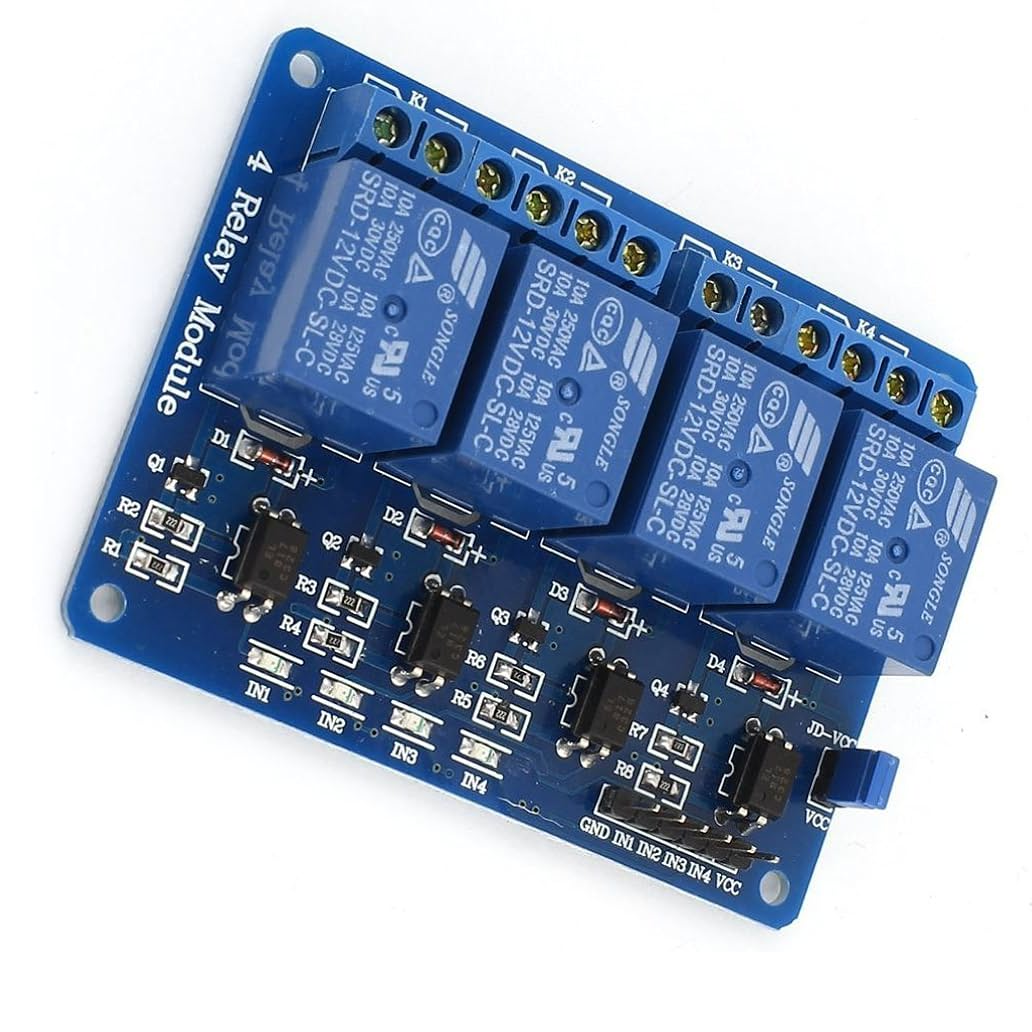

This 4 Channel 5V Relay Module with Optocoupler meet the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module.

The triggering of 4 Road/Channel Relay Module is reliable, more stable. The double FR4 circuit board design, high-end SMT process. It has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.

The inputs of 4 Channel 12V Relay Module are isolated to protect any delicate control circuitry.

A wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on can control it.

The use of such high-voltage relay eliminates the risk of heating up of the relay as electromechanical relay limit the current consumption in accordance with a voltage rating.

1. It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc.
2. High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
3. Freewheeling diode to protect your microcontroller
4. Input Signal Pin connected to Burg stick for easy accessibility
5. LED Status indicators to indicate the relay ON/OFF status
6. Mounting holes provided
7. Signal input with a high-level signal, the common and often start conduction;
8. The relay can directly control all kinds of equipment and load;
9. One often opened a normally closed contact;
10. Blue KF301 terminal line more convenient.

Package includes :

1 x 4 Channel 5V Relay Module with Optocoupler
