41F Hall

Brand: EMBEDDINATOR | Made in: India

Offer Price

Rs 87

MRP

Rs 140

38% Off

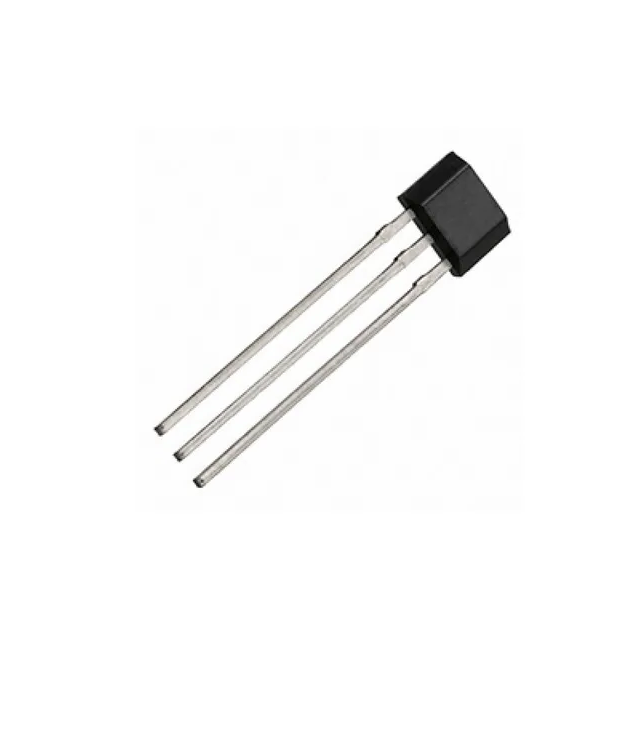

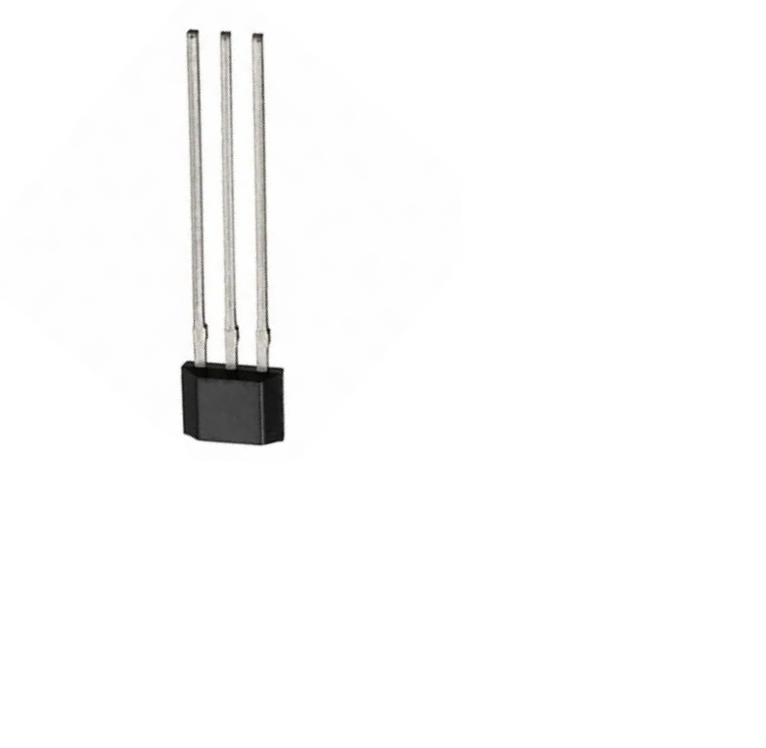

The 41F is a switched Hall-effect IC designed for contactless switching applications. It incorporates various components on a single chip, including an on-chip Hall voltage generator for magnetic sensing, an amplifier to amplify the Hall voltage, a Schmitt trigger to provide switching hysteresis for noise rejection, and an open-collector output. This integrated design allows for precise and reliable switching in response to changes in magnetic fields without the need for physical contact, making it suitable for a wide range of applications requiring non-contact switching functionality.

Currently not available

Whatsapp for Bulk Order

SKU: ENG-HALL2
Availability:0 In Stock

Description

41F Hall

Model number is 41F, TO-92S, 0H41, SH41, SS41F, S41.4.5 V to 24V operating voltage, used for electric vehicle or industrial motor.25 mA output current works with most of open-collector.Operating temperature is -40°C to +150°C, 3 pins terminals length about 15mm/0.59inch.And also the ideal parts for electric bike or scooter brushless motor repair parts.

Specification:

Specification	Value/Description
Type	Switched Hall-effect IC
Operating Voltage Range	Typically around 4.5V to 24V
Hall Voltage Generator	On-chip
Amplifier	Included on-chip
Schmitt Trigger	Included on-chip
Output	Open-collector output
Output Current	Typically low, compatible with various loads
Switching Hysteresis	Provided by the Schmitt trigger for noise rejection
Sensing Method	Contactless magnetic sensing
Applications	Contactless switching applications
Temperature Range	Typically specified by the manufacturer (e.g., -40°C to 125°C)
Package	Various packages available, such as SOT-23, TO-92, or similar
