The 74HC595 high-speed shift register utilizes advanced silicon-gate CMOS technology. This device possesses the high noise immunity and low power consumption of standard CMOS integrated circuits, as well as the ability to drive 15 LS-TTL loads. This device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type storage register.
The storage register has 8 3-STATE outputs. Separate clocks are provided for both the shift register and the storage register.

The 74HC logic family is speed, function, and pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Features:-

Low quiescent current: 80 ?A maximum (74HC Series)
Low input current: 1 ?A maximum
8-bit serial-in, parallel-out shift register with storage
Wide operating voltage range: 2V?6V
Shift register has direct clear
Guaranteed shift frequency: DC to 30 MHz

Clamp Diode Current (IIK, IOK): ? 20 mA
DC Output Current, per pin (IOUT): ? 35 mA
DC VCC or GND Current, per pin (ICC): ? 70 mA
Storage Temperature Range (TSTG): ? 65?C to + 150?C
Power Dissipation (PD) (Note 4): 600 mW
S.O. Package only: 500 mW
Lead Temperature (TL) (Soldering 10 seconds): 260?C

Product Includes:-

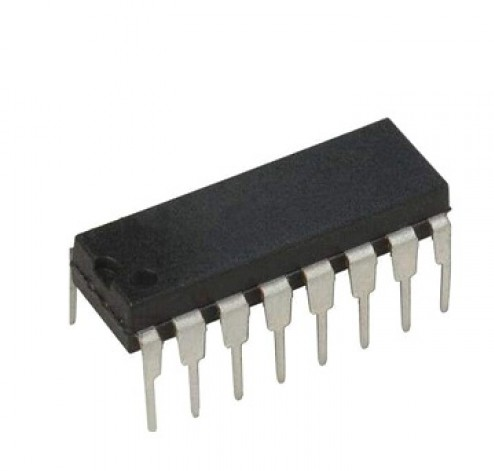

1x 74HC595 8-bit Serial to Parallel Shift Register IC (74595 IC) DIP-16 Package
