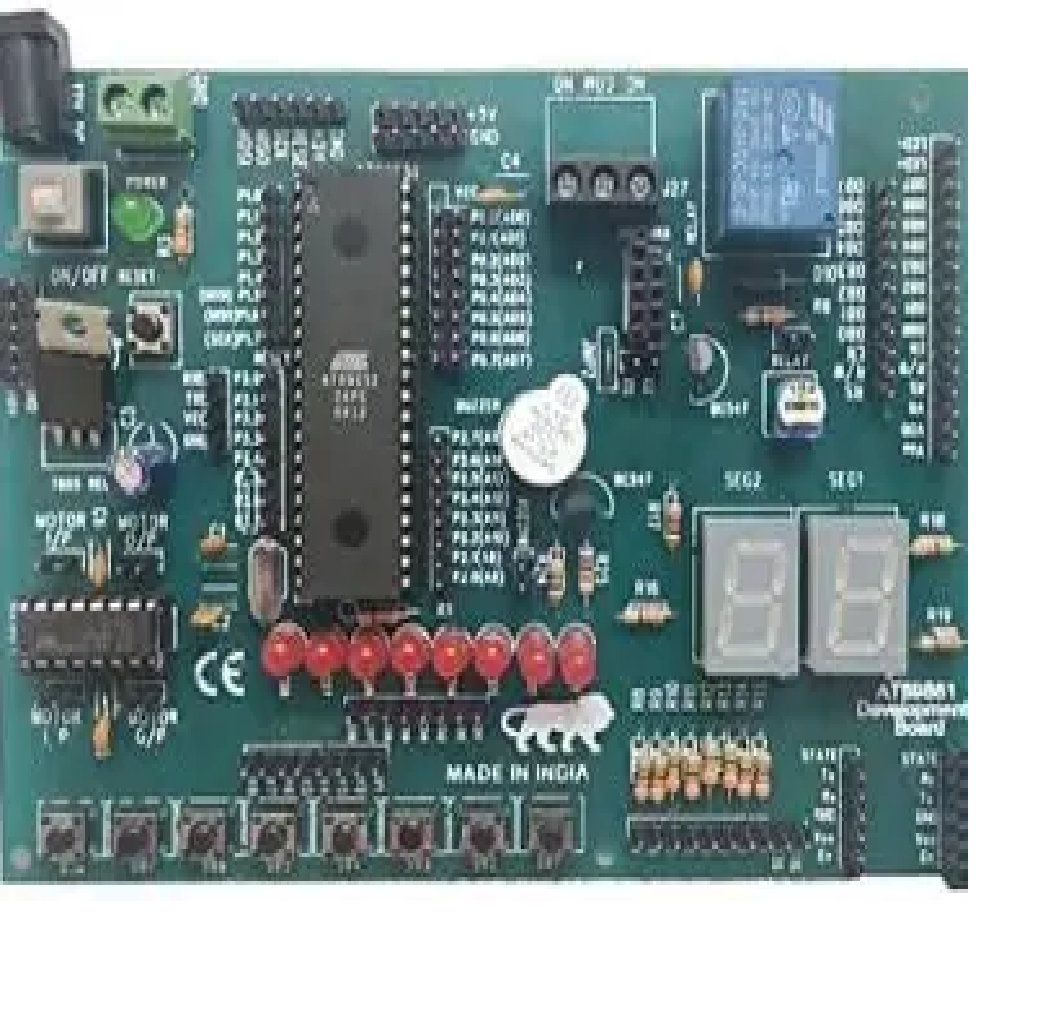

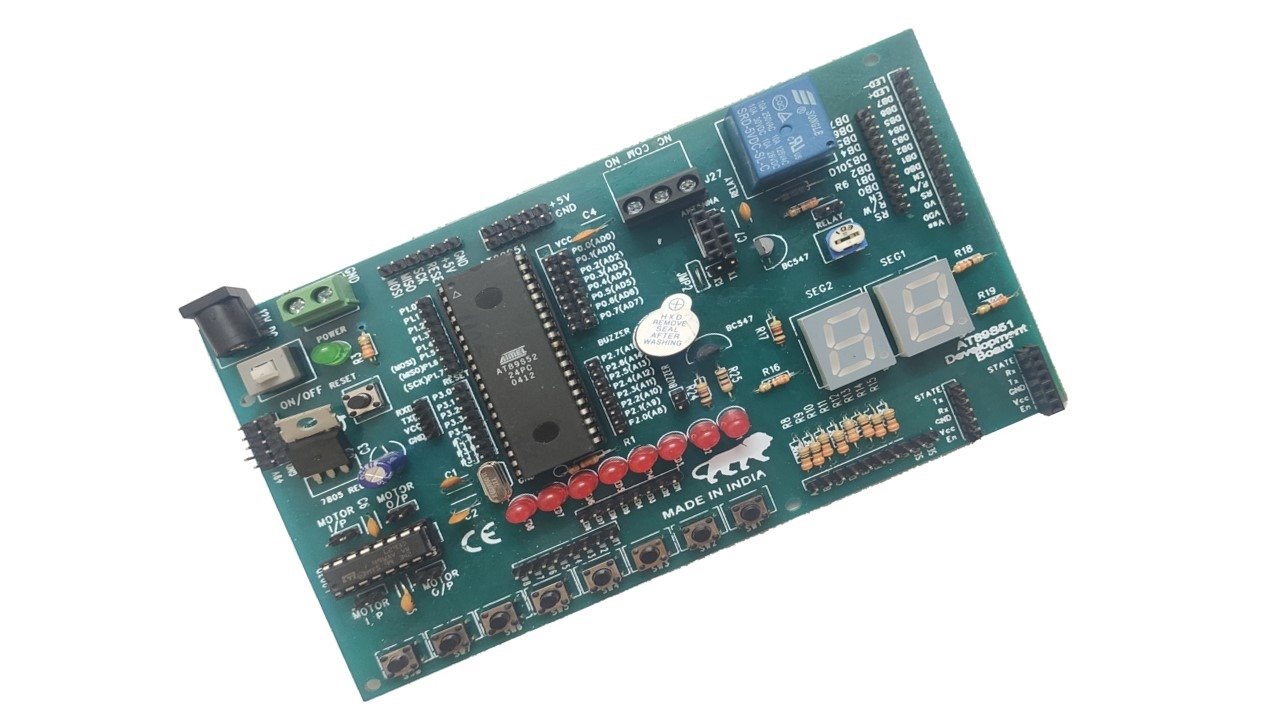

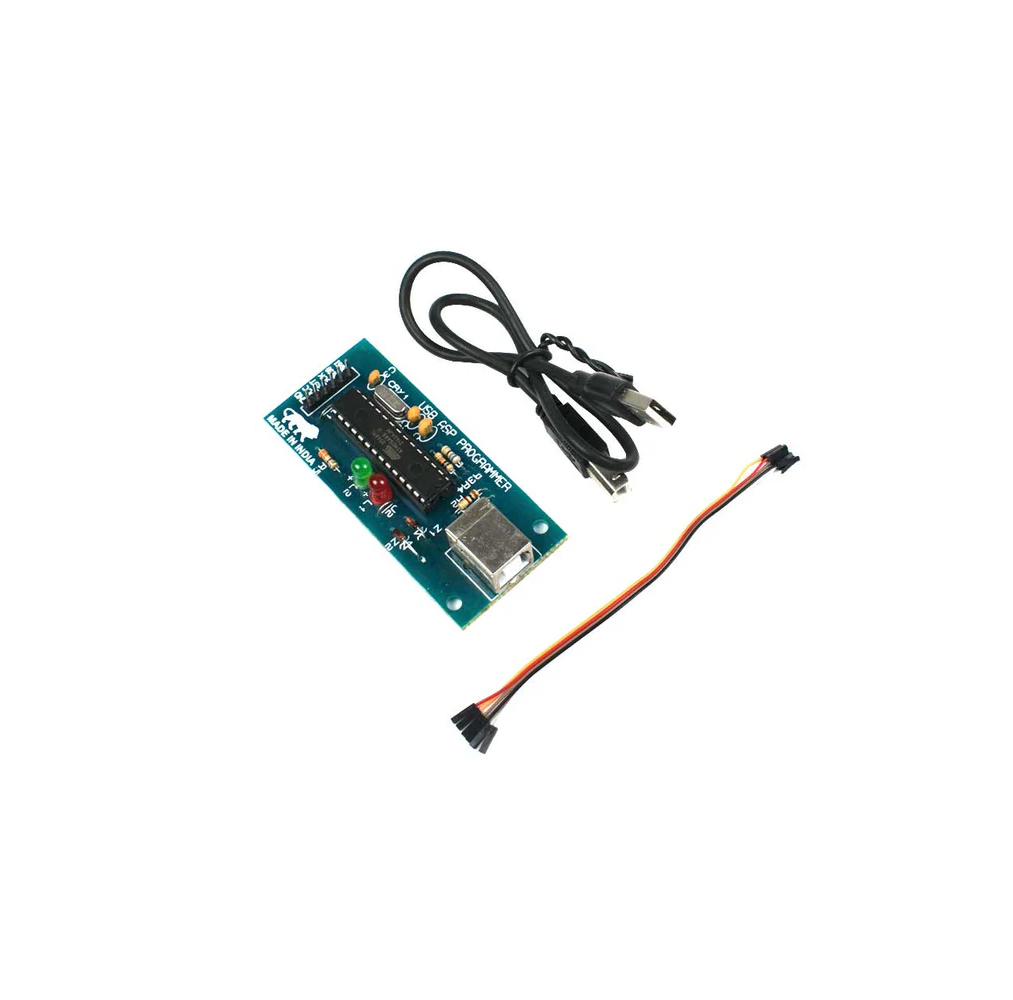

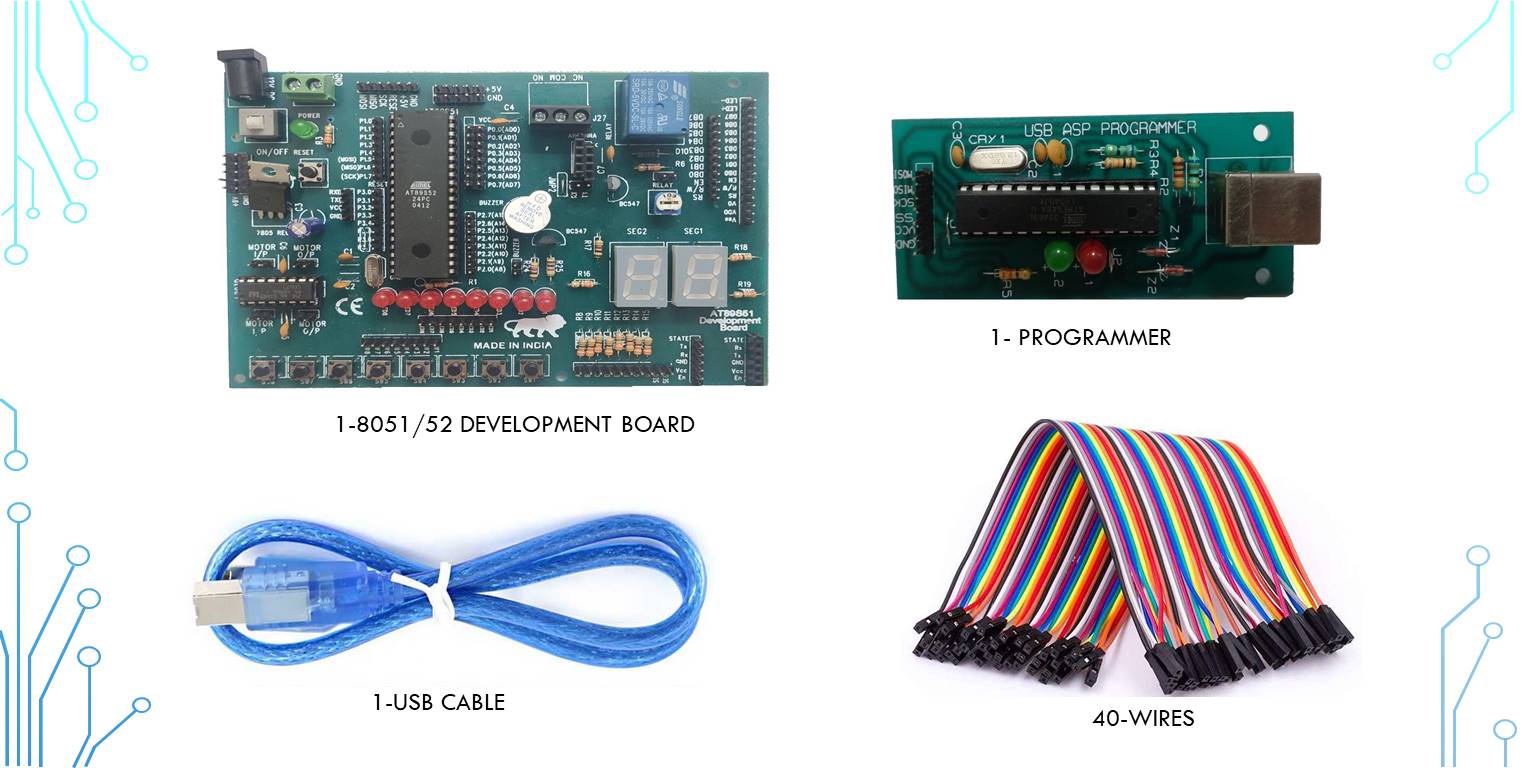

8051/8052 Microcontroller Development Board With USB Programmer & 40-Pin Wires

EnGeniusLab Introduce MCS-51 Series Development Board can be used to evaluate and demonstrate the capabilities of microcontroller. It is a great way to start working with most popular range of microcontrollers the 8051 series. The board is ideal for experimenters or as a main CPU board for a more advanced digital system. The MCU socket on board provides support for 40 pin DIP package of 8051 controller series. The board is designed for general purpose applications and includes a variety of hardware to exercise microcontroller peripherals. It is a fantastic tool for code debugging, development and prototyping. The all new board design have made it much more user-friendly than its predecessors, ideally suitable for training and development purposes. The components used in this board are of high quality and the PCB is high quality PCB, which makes this board especially durable. When you start using the EnGeniusLab 8051 Development Board you will find it to be one of the best development tool available for MCS-51 controller.

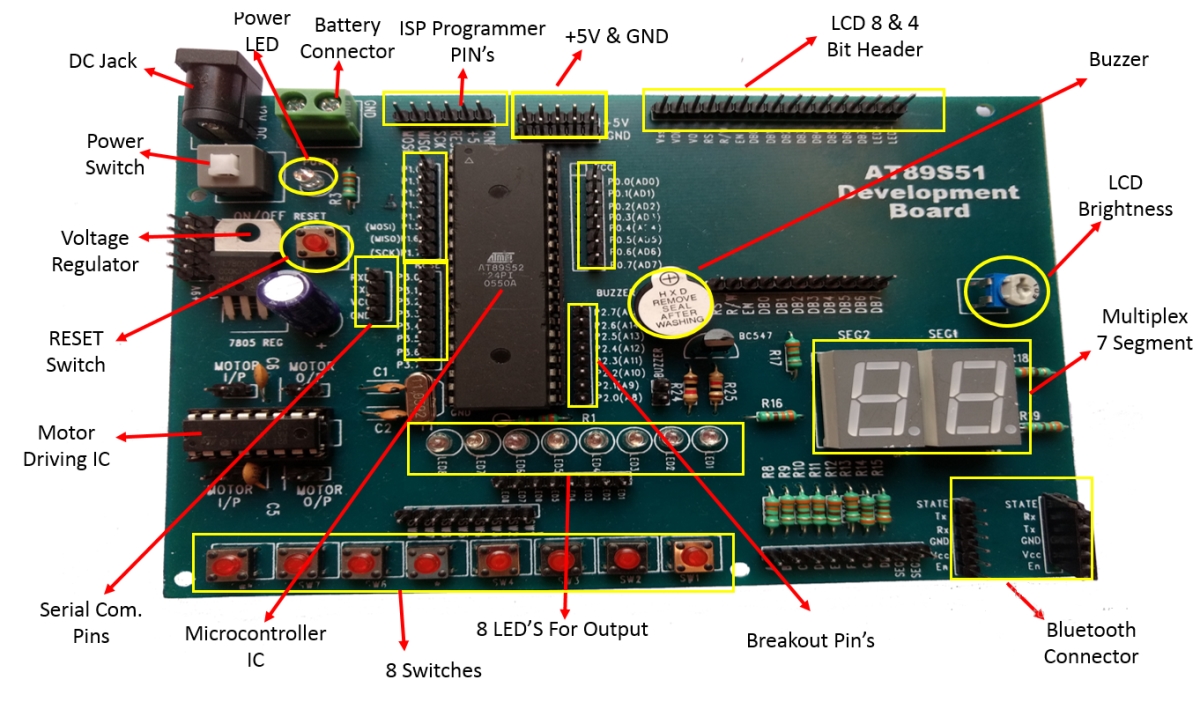

Development Board Features:-
•Compact and Ready to use design
•Professional High Quality Glass PCB Layout Design for Noise Reduction
•Includes AT89S51/AT89S52 Microcontroller
•External Power Supply range of 7V to 12V
•On board Two Line LCD Display (2x16)
•Two multiplexed 7-Segment LED Display
•Built in Switches (8 keys)
•Built in 8 LED Interface to test I/O
•On Board Bluetooth Interface (HC-05)
•On Board Buzzer Interface
•On Board ISP Connector
•All Port Breakout Pins are available at male bugs Connector
•Can be used as main board for developing applications

•All most all input & output devices supported by board like Sensor, Serial Communication Devices GSM, RF-ID, IOT, & much more....
