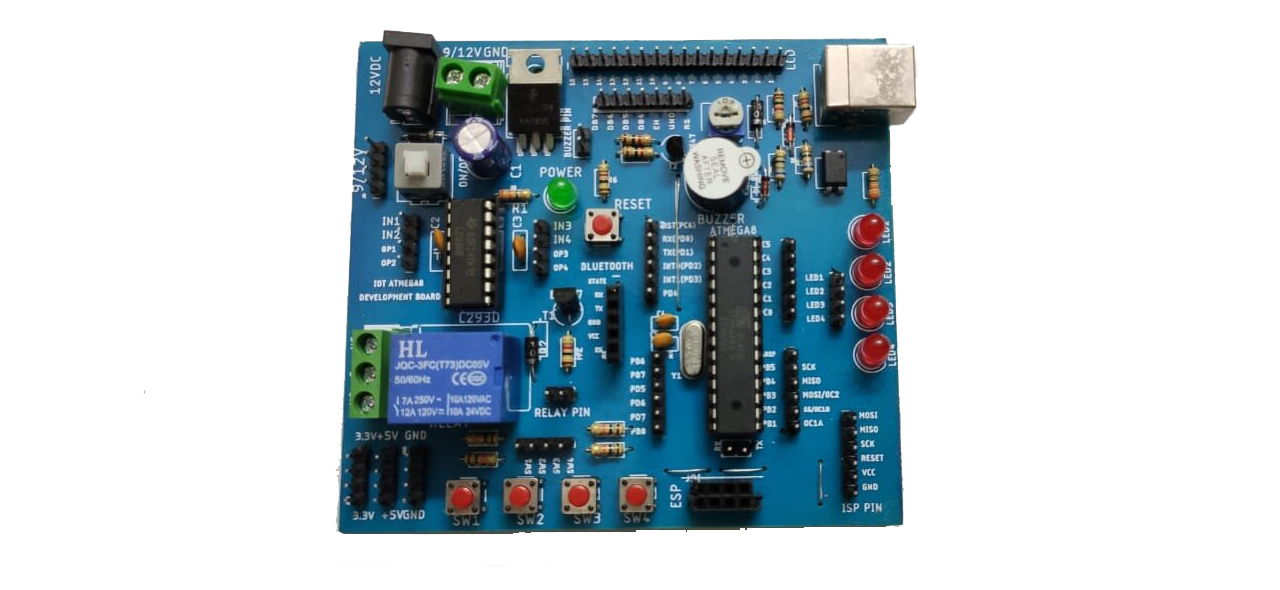

AVR ATmega8 Bootloader Development Board

Start your exploration by using EnGeniusLab AVR MCUs Development Board with Explore of ATmega8 with lots of amazing on board features. We have built this development board to make powerful AVR Micrcontrollers series more accessible to you. The board has Atmega8 MCU with USB bootloader feature, hence no external programmer is required which means this can easily programmed by USB Cable only. This has on board L293D circuit which provide best solutions for robotics applications. 4 LED also provided to check the status & configure the outputs. We designed this board for small robotics & embedded applications tools & projects.

The board uses Atmega8 an 8-bit, 12 MHz Microcontroller with numerous features. The board also has a USB bootloader which making programming the microcontroller extremely use. You simply need to drag and drop the HEX file by using bootloader software. The board breaks out most of the pins and it fits on a bread board for development of projects & interfacing of outside input & output device.

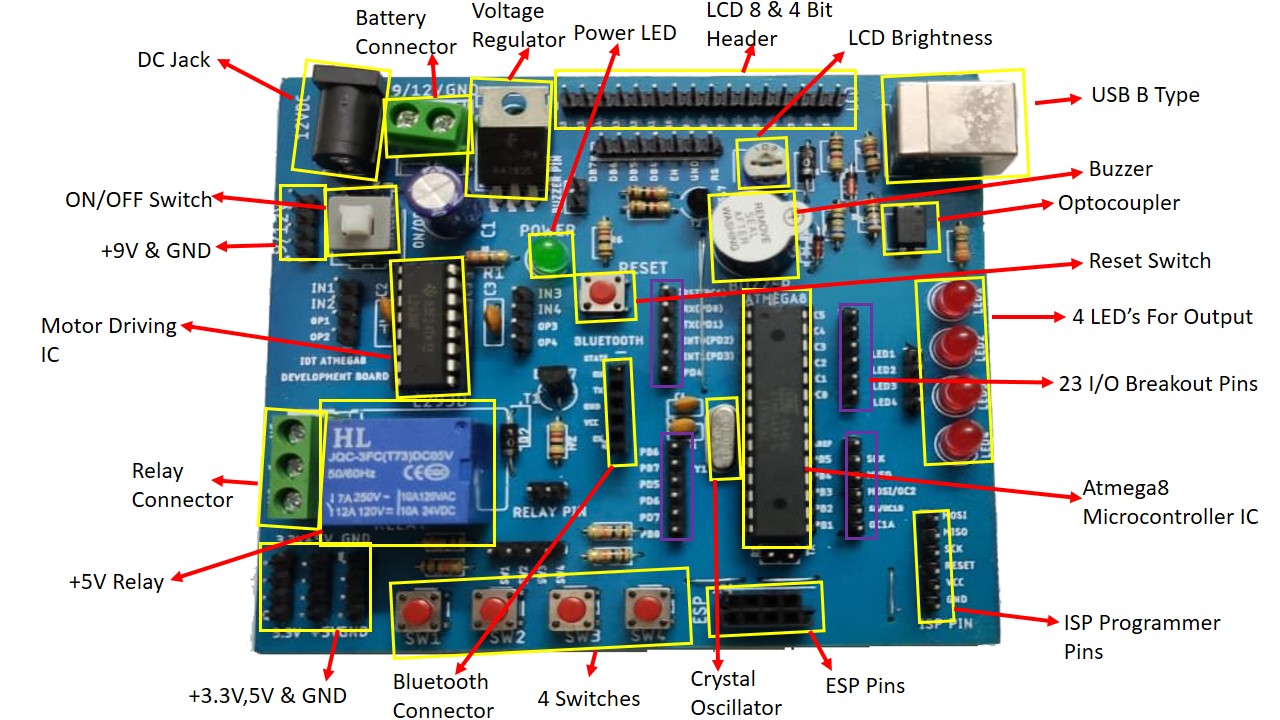

Board compact design with on board motor driving L293D Circuit & DTMF Circuit which make board compatible to mobile phone communication by DTMF technology which make ths board very special for techy lover. Apart from this on board LCD header & 4 LED with 4 Switches with on board Buzzer available, by which it supportable in many embedded projects & applications. EnGeniusLab’s Atmega8 board are compatible for all type of robotics making & designing Projects.

Special Features:- •USB Interface:- for communicating with the host computer. •Direct USB Programmer Development AVR Board by using button of BOOT. •23 Pin breakout are available for outside device interfacing. •50+ Project you can developed on this board by using various outside devices.
All most all input & output devices supported by board like Sensor, GSM, GPS, RF-ID, Wireless, IOT, RF & much more....
