Description
FS-iA6B receiver with this kit. This is a compact 6-channel receiver with a range exceeding 500m in addition; it comes with a dual antenna for excellent reception and interference rejection capabilities.
Each transmitter has a unique ID and so when binding; the receiver remembers this ID and accepts data from that transmitter only. This avoids picking up other transmitter signals dramatically decreases inference and increases safety.

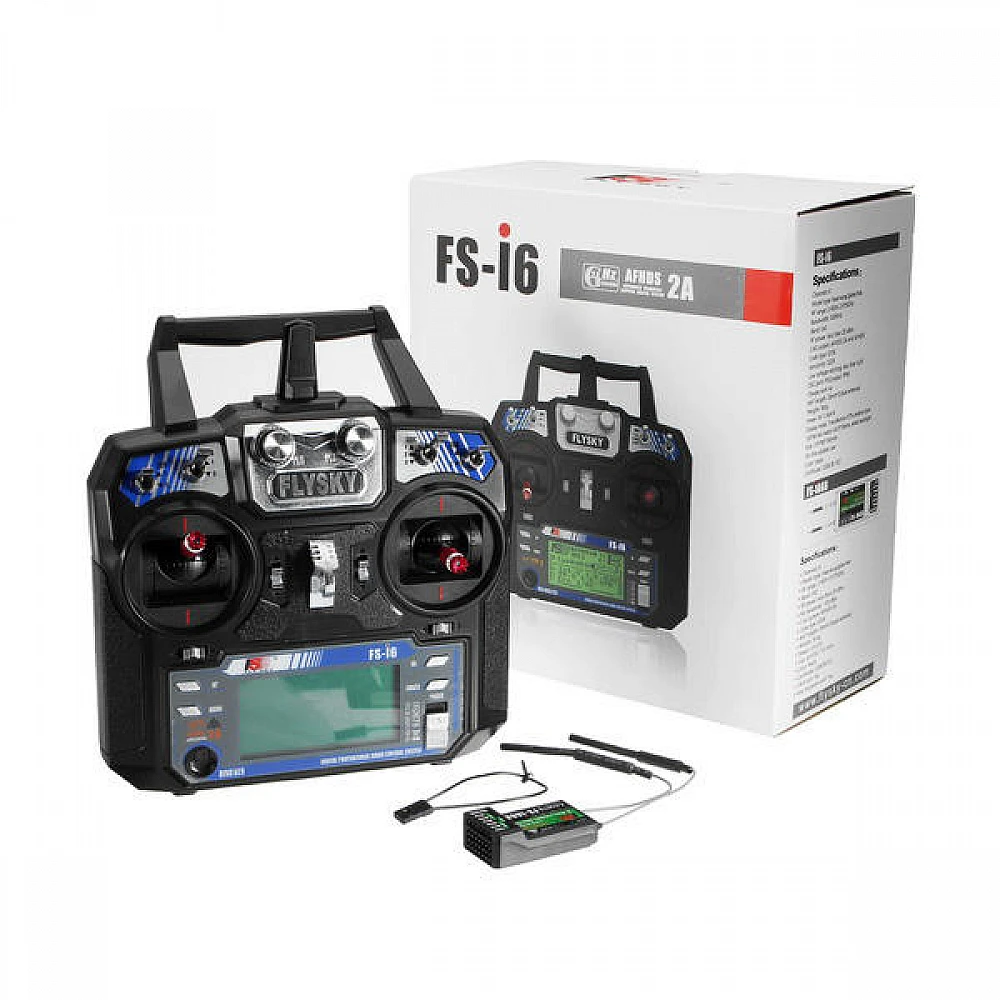

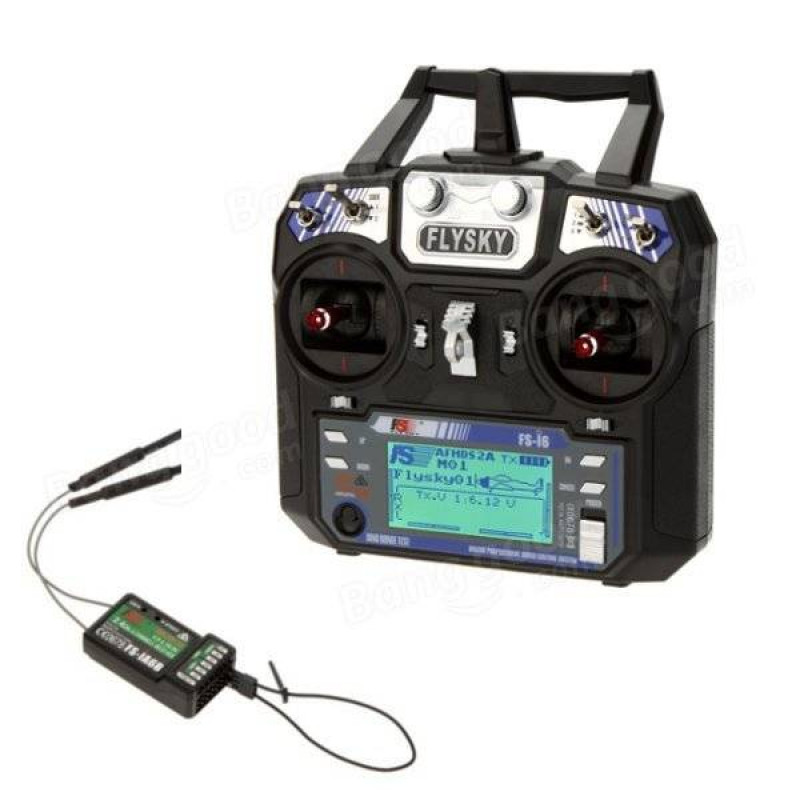

FS-I6 SPECIFICATIONS:
- Channels: 6 Channels
- Model Type: Glider/Heli/Airplane
- RF Range: 2.40-2.48GHz
- Bandwidth: 500KHz
- Band: 142
- RF Power: Less Than 20dBm
- 2.4ghz System: AFHDS 2A and AFHDS
- Code Type: GFSK
- Sensitivity: 1024
- Low Voltage Warning: less than 4.2V
- DSC Port: PS2;Output:PPM
- Charger Port: No
- ANT length: 26mm*2(dual antenna)
- Transmitter Weight: 392g
- Transmitter Size: 174x89x190mm
- Power: 6V 1.5AA*4
- Display mode: Transflective STN positive type, 128*64 dot-matrix VA73*39mm, white backlight.
- On-line update: yes
- Color: Black
- Certificate: CE0678,FCC
- Model Memories: 20
- Control Range: 500m

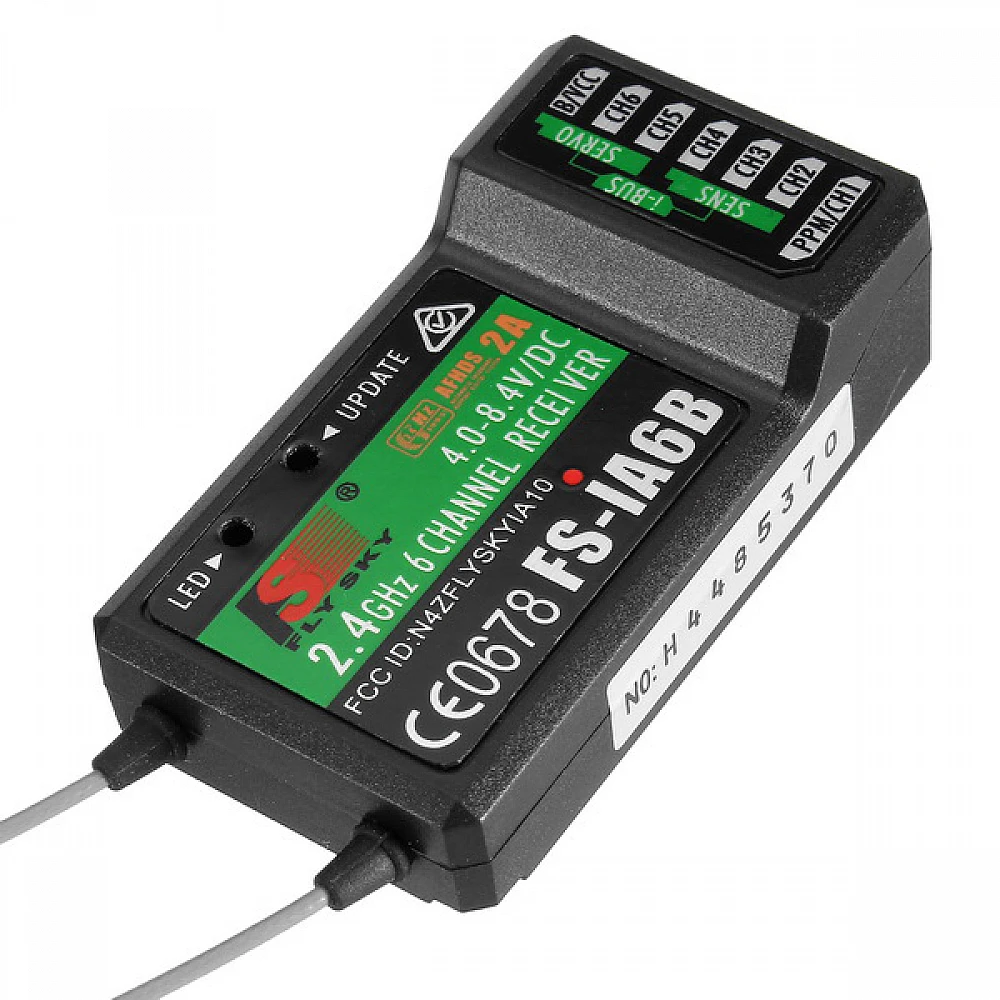

FS-iA6B Specifications:
- Item Name: FS-iA6B
- Channel: 6
- Frequency Range: 2.4055--2.475GHZ
- Band Width Number: 140
- Transmitting Power: ≤ 20dBm
- RF Receiver Sensitivity: -105dbm
- 2.4G Mode: The second generation of an enhanced version of the automatic FM digital system
- Encoding: GFSK
- Antenna Length: 26mm * 2 (dual antenna)
- Input Power: 4.0-6.5V DC
- Dimension: 47 x 26.2 x 15mm
- Color: Black
- i-Bus Interface: Yes
- Data Acquisition Interface: Yes
- Model Type: Airplane / Glider / Helicopter
- Compatible Transmitter: Compatible with FS-i4,FS-i6,FS-i10,FS-GT2E,FS-GT2G
Features:
- Works in the frequency range of 2.405 to 2.475GHz.This brand has been divided into 142 independent channels, each radio system uses 16 different channels and 160 different types of hopping algorithms.
- This radio system uses a high gain and high-quality multi-directional antenna, it covers the whole frequency band. Associated with a high-sensitivity receiver, this radio system
