Description
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and presented by Flysky is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and highly reliable receiver sensitivity
FrSky Transmitter and Receiver is gaining so much popularity due to its originality and compatibility in high-end drone projects.
Features:
- 10-channel 2.4GHz radio with telemetry capability
- Automatic Frequency Hopping Digital System (AFHDS) spread spectrum technology
- Transmitters come pre-bound to the receiver
- Multiple control switches including a 3-pos switch and two potentiometers
- Easy to use and program
- 20 model memory
- Trainer port
- The backlit LCD screen displays real-time transmitter and receiver voltage

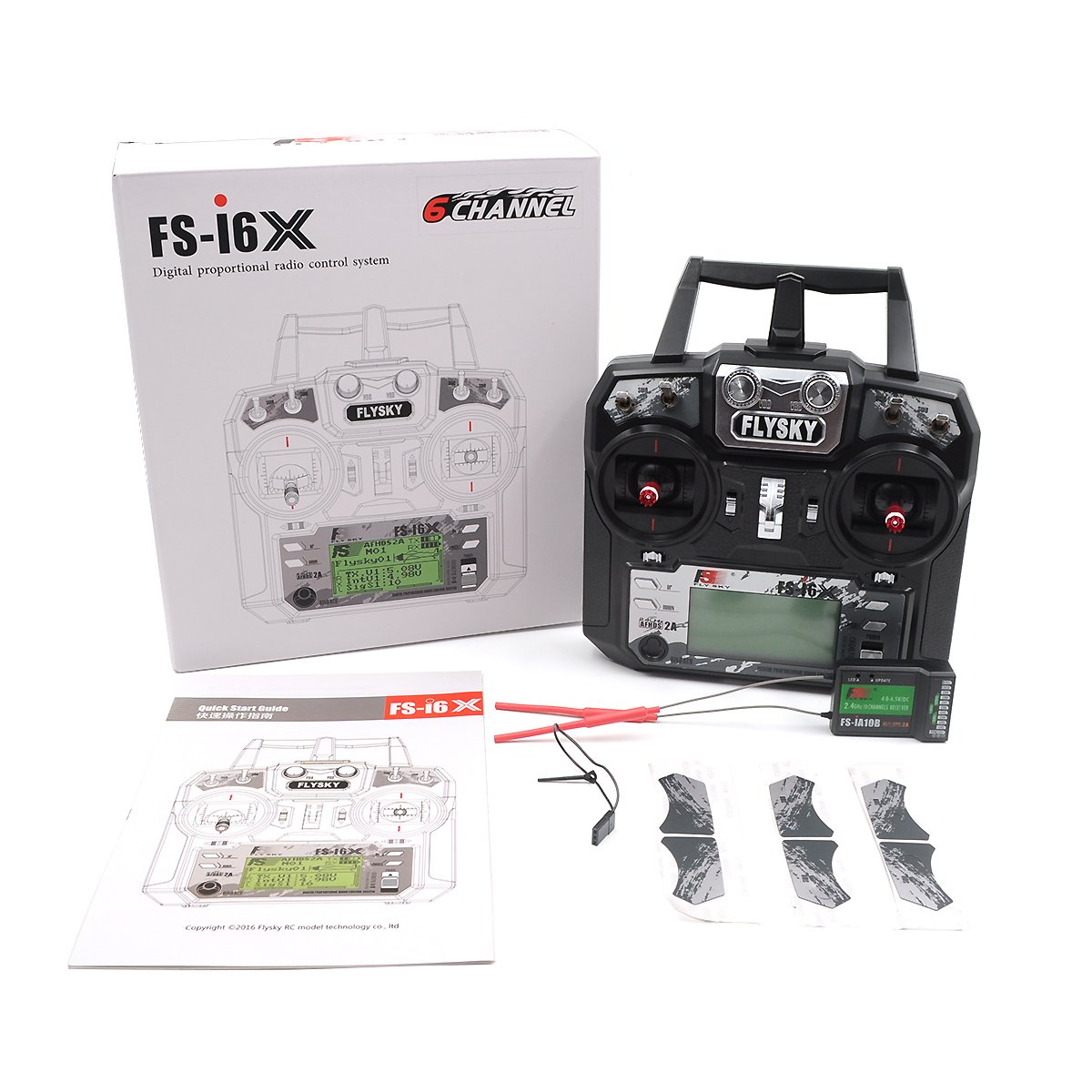

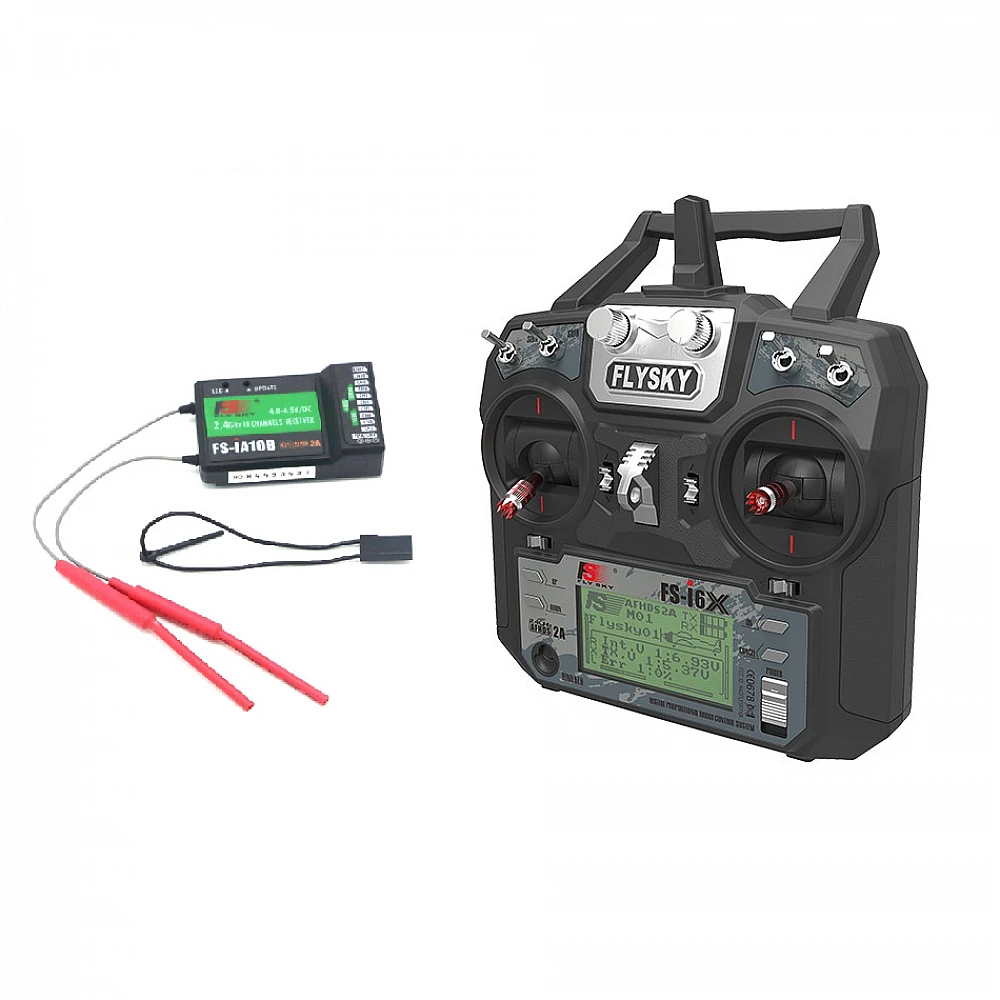

Specification for FS-i6X RC Transmitter :
- Item: FS-i6X RC Transmitter
- Tx Channel: 6-10 (6 Default)
- Model Type: Fixed-Wing/Glider/Helicopter
- RF Range: 2.408-2.475GHz
- RF Power: < 20dBm
- RF Channel: 135
- Bandwidth: 500KHz
- 2.4GHz System : AFHDS 2A / AFDHS
- Modulation Type: GFSK
- Stick Resolution: 4096
- Low Voltage Warning: < 4.2V
- DSC port: PS/2 Port PPM
- Chargeable: No
- Antenna Length: 26mm (Dual Antenna)
- Weight: 392g
- Power : 6V DC 1.5A
- Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight
- Size : 174 x 89 x 190 mm
- Online Update: Yes
- Color: Black
- Certificate: CE0678, FCC
Specifications for FS-iA10B RC Receiver:
- Rx Channels: 10
- Suitable models: Airplane / glider / helicopter Health
- Frequency range :2.4-2 .48 GHz
- Transmitting power: not more than 20dBm
- Receiver sensitivity:-105dBm
- 2.4G modes: automatic frequency second generation digital system
- Encoding: GFSK
- Antenna length: 26 mm * 2 (dual antenna)
- Weight: 19.3 g
- Input power :4.0-6 .5 V DC
- Dimensions: 47 x 33.1 x 14.7 mm
- Color:
