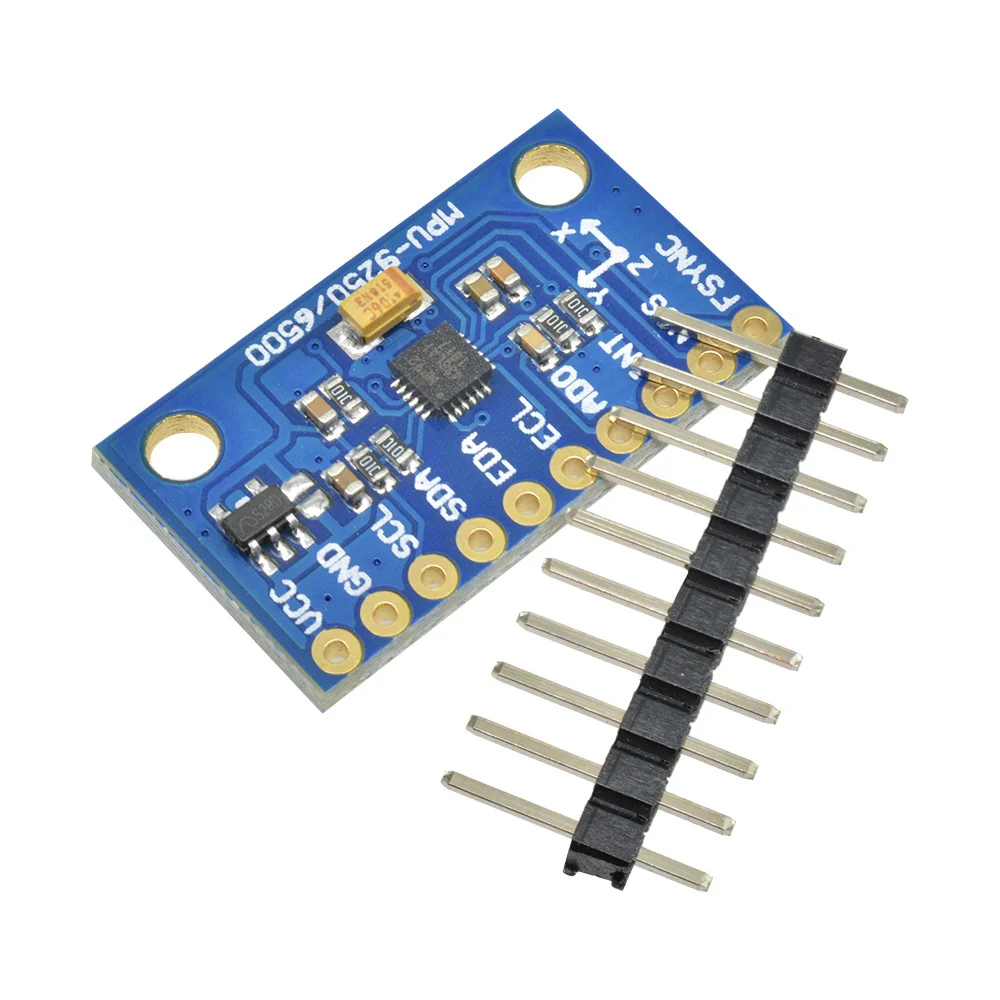

The MPU-9250 9-Axis Attitude Gyro Accelerator Sensor Module is a multi-chip module (MCM) that contains two dies in a single QFN package. It has a 3-axis gyroscope, a 3-axis accelerometer, and a Digital Motion Processor (DMP) that track the motion in 9 axes. It also has a built-in temperature sensor. The module has pull-up resistors on the SDA, SCL, and nCS lines, and pull-down resistors on the FSYNC and AD0 lines. It has an on-board 3.3V voltage regulator that lets you power it from a 5V source like an Arduino. You can also power it from a 3.3V source by bridging the solder jumper next to the regulator.

Features :

1. Acceleration, Gyroscope
2. 9 DOF module
3. Build-in ultra-low noise linear LDO voltage regulator.
4. Built-in onboard filters, which reduce noise from the motor and other high-current electronics.
5. All sensors are connected to the I2C bus.
6. Build in the Logic level converter for I2C.
7. Power indicator LED.
8. Using Immersion Gold PCB, machine welding process to ensure quality.
9. On-board pull-up resistors on SDA, SCL, and nCS
10. On-board pull-down resistors on FSYNC and AD0

Package Includes :

1 x GY-9255 MPU9255 Sensor Module
