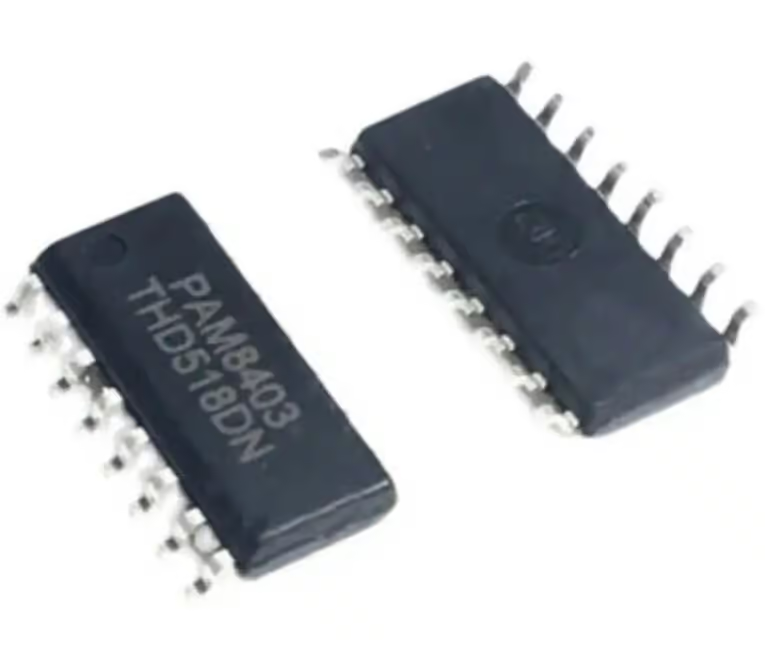

PAM8403 is a 3 Watt, class-D audio amplifier. It offers low THD+N, allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications. The PAM8403 is available in SOP-16 package.

Features of PAM8403

• 3W Output at 10% THD with a 4Ω Load and 5V Power Supply

• Filterless, Low Quiescent Current and Low EMI

• Low THD+N

• Superior Low Noise

• Efficiency up to 90%

• Short Circuit Protection

• Thermal Shutdown

• Few External Components to Save the Space and Cost
• Pb-Free Package

  Applications of PAM8403

  • LCD Monitors / TV Projectors
  • Notebook Computers
  • Portable Speakers
  • Portable DVD Players, Game Machines
  • Cellular Phones/Speaker Phones
