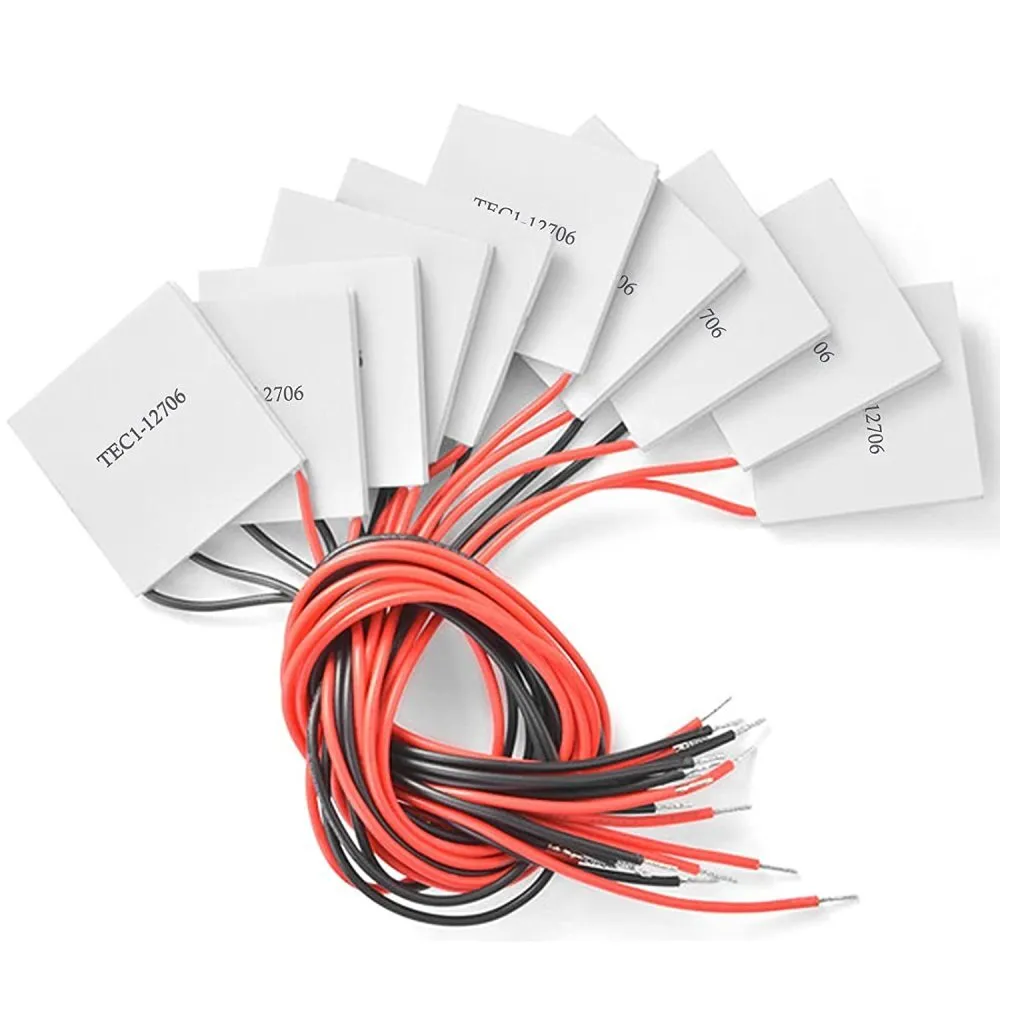

TEC1-12706 Thermoelectric Cooler Peltier module 12V, 6A (40x40mm)

TEC1-12706 Thermoelectric Cooler Peltier module 12V, 6A (40x40mm)

Brand: Embeddinator | Made in: India

Offer Price

Rs 159

MRP

Rs 199

20% Off

Thermoelectric cooling uses the Peltier effect to create a heat flux between the junctions of two different types of materials. A Peltier cooler, heater, or thermoelectric heat pump is a solid-state active heat pump that transfers heat from one side of the device to the other, with consumption of electrical energy, depending on the direction of the current. Such an instrument is also called a Peltier device, Peltier heat pump, solid state refrigerator, or thermoelectric cooler (TEC). It can be used either for heating or for cooling, although in practice the main application is cooling. It can also be used as a temperature controller that either heats or cools.

Currently not available

Whatsapp for Bulk Order

SKU: ENG-PEL_12706
Availability:0 In Stock

Description

TEC1-12706 12V DC, 50~92W Semiconductor Thermoelectric Peltier Cooler Heater Module. A thermoelectric cooling (TEC) module is a semiconductor-based electronic component that functions as a small heat pump. By applying DC power source to a TEC, heat will be transferred from one side of the module to the other. It creates a cold and hot side. They are widely used in industrial areas, for example, computer CPUs, CCDs, portable refrigerators, medical instruments, and so on.

Color: White
Material: Plastic + ceramics
Rated voltage: 12V
Rated power: 50~72W
Get ice cold in minutes or heat to boiling by simply reversing the polarity, used for numerous applications from CPU coolers to alternate power sources, or even for your own custom car drink warmer/cooler.
These devices must be used in conjunction with a heat sink to avoid burned
One side is cooling (Printed model number)and another side is heating (Printed no word) when working.
Please radiate the heating side, avoid using under no-radiating conditions over 2s\Coated with thermal grease when installing the device
Cable length: 30cm
Dimensions: 1.57 in x 1.57 in x 0.12 in (4.0 cm x 4.0 cm x 0.3 cm)

Notes:

Power ON the device only with proper Heat-sink setup to avoid any burning/damage or malfunction of the device!
Use a good quality heat sink (such as in CPU fans) with thermal paste and power the device.
Use a 12V DC power supply to power the TEC1-12706.
Use ONE AA battery for 10- 20 seconds to power ON the device to find the hot /cold side.
Warning!
Power ON the device only with proper Heat-sink setup to avoid burning/damage/malfunction of device!

1. The hot surface Th of the TEC must be attached to a suitable FAN SINK (60x60x40+mm) that is capable of carrying away both the heat pumped by the TEC plus Joule heat from the electric power supplied to the TEC. A heat sink rise of 15C above ambient is typical for many TEC applications. Otherwise, a bigger heat sink must be used to reduce temperature.

2. Care should be taken when applying pressure during installation. Uniform pressure is desired across the mounting surfaces. If uneven pressure is applied, thermal performance may be reduced or damage may occur to the TEC.

3. Clean surface thoroughly, making sure there are no chips, dirt or any foreign substances that may affect bonding. Coat the contacting sides, Th and Tc, with thermally conductive grease or glue.
