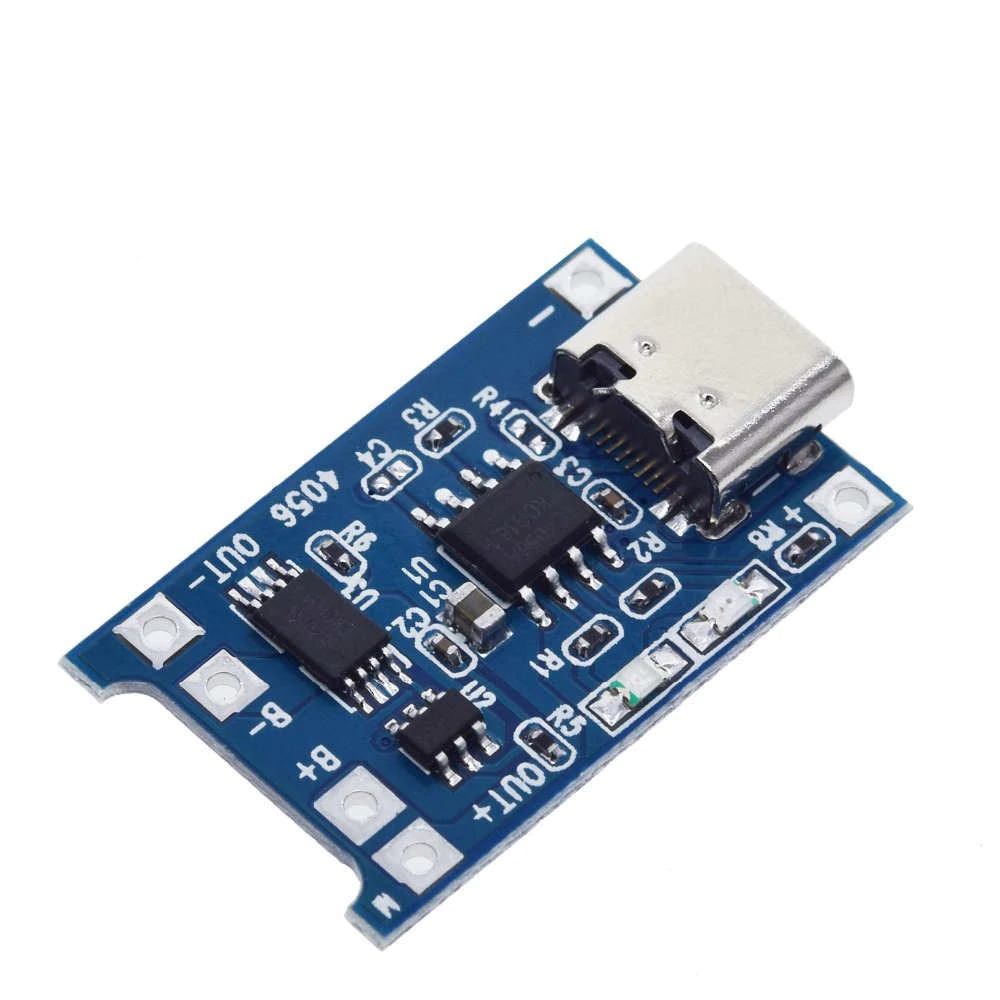

TP4056 1A Li-Ion Battery Charging Board C type with Current Protection

TP4056 1A Li-Ion Battery Charging Board C type with Current Protection

Brand: Generic | Made in: China

Offer Price

Rs 13

MRP

Rs 20

35% Off

Using the module: Connect micro USB cable for power, or 5V DC to pads marked IN+ and IN- on the left-hand side of the module Connect cell to charge to B+/B- pads on the right-hand side of the module. A load (something for the battery to power) can be connected to the OUT+/OUT- pads on the right-hand side Important! Disconnect load when charging The red LED indicates charging in progress, green LED indicates charging has finished

Buy Now

Whatsapp for Bulk Order

SKU: ENG-TP4056_Ctype
Availability:10 In Stock

Description

The TP4056 is a commonly used lithium-ion battery charging module designed to charge single-cell lithium-ion or lithium-polymer batteries with a nominal voltage of 3.7V. It's widely utilized in various electronic devices and DIY projects due to its simplicity, efficiency, and affordability. The "1A" in its name indicates that it supports a charging current of up to 1 ampere (1000 milliamperes), which is suitable for charging batteries with different capacities. Typically, the input voltage can range from 4.5V to 5.5V DC. This makes it compatible with standard USB C Type power sources.
