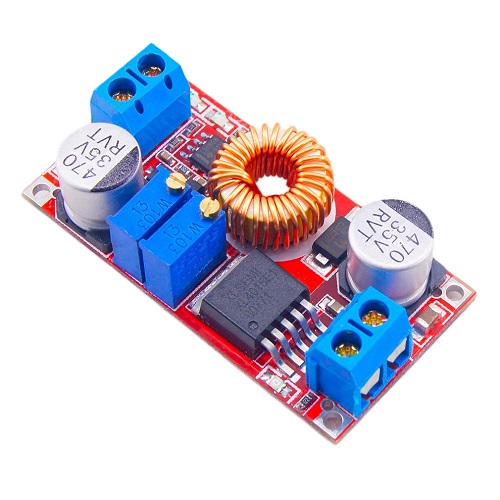

The XL4015 5A DC-DC Step Down Adjustable Power Supply Buck Module is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple, and excellent line and load regulation. The DC/DC buck module has applications where the input voltage is higher than the output voltage , such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV portable instrument power supply telecom/networking equipment, 24V vehicle notebook power supply, industrial equipment buck.12V buck to 3.3V, 12V buck to 5V, 24V buck to 5V,24V buck to 12V, buck to 24V etc.

Specifications:

• Output voltage: 0.8V-30V
• Input voltage: 5V-32V
• Operating Temperature: -40 ° to +85 °
• Output current: adjustable maximum 5A (heat sink recommended at 5A)
• Voltage Regulation: ± 2.5%
• Load Regulation: ± 0.5%
• Output ripple: 50mV (max) 20M bandwidth
• Switching frequency: 300KHz
• Conversion efficiency: 95% (the highest)
• Rectification: non-synchronous rectification
• Module Properties: non-isolated constant current and voltage module.
• Size: 51×26.3x14mm
